QC01-B40 Variable Pressure Electric Gear Pump
1, Variable pressure relief valve to achieve automatic pressure regulation, different working environment temperature, the pump automatically adjust the working pressure to ensure the full working condition lubrication.
2, Oil pump removable design, reasonable structure layout, easy maintenance.
3, High-performance motor, low speed, high torque, high output pressure, low-temperature drive.
4, The external intelligent controller can be personalized and self-set, and the system oil discharge process can be timed and quantified.
5,Oil pump two-way inlet and outlet oil design, to meet the requirements of different installation positions, easy installation.
6, Rotary grease filler, saves time and effort.
-
/huabei/2025/02/10/11-6.png,/huabei/2025/02/10/12-3.png
Product parameters
Feedback
| Technical parameter | |
| Operating voltage | DC24V/12V |
| Rated power | 25W |
| Nominal pressure | 3.8~8.5MPa |
| Tank volume | 3.0L |
| Working medium | NLGI0, 00, 000 EP lithium base grease |
| Use environment | 15 ℃ ~ 70 ℃ (Antifreeze grease is recommended below -15℃) |

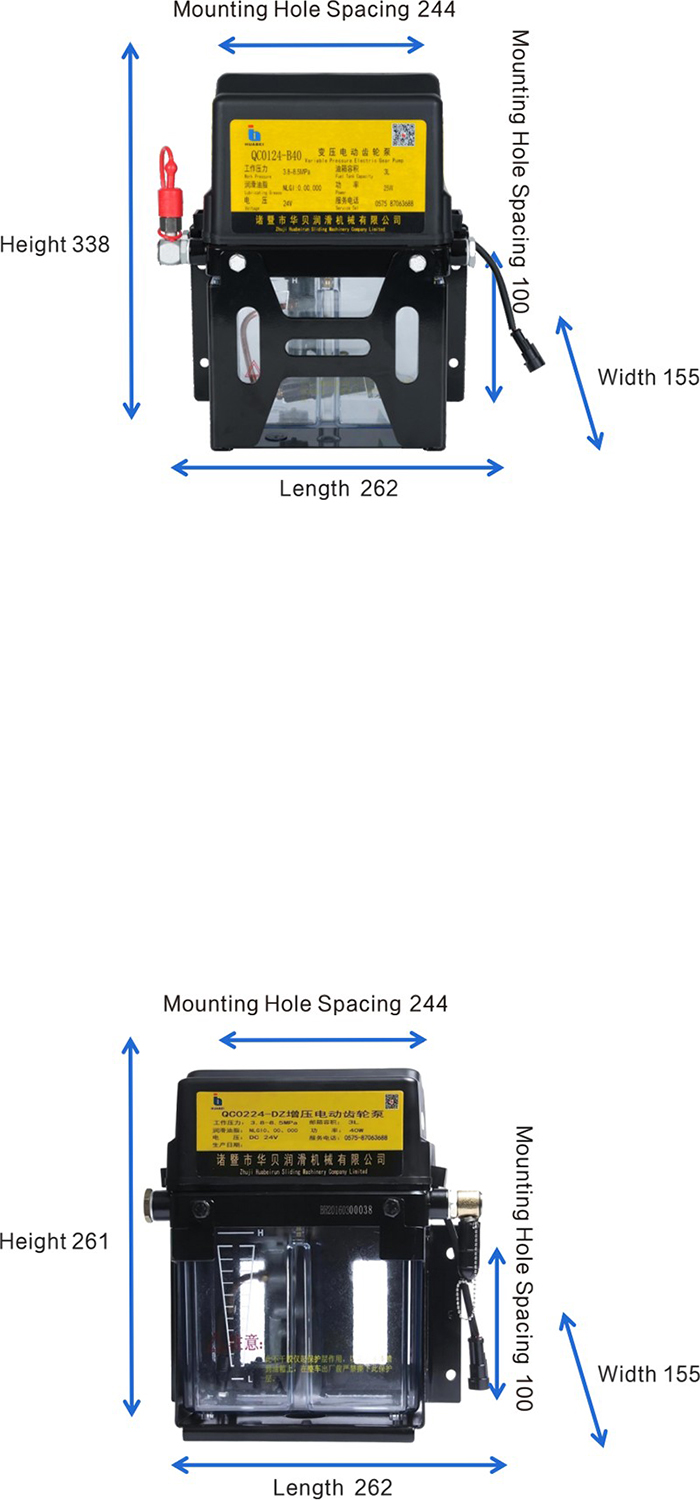

| Overall dimension | 262×155×338 |
| Control mode | External program controller |
| Rest time | 0.5~24h(adjustable, step by 0.5h) |
| Detection function | System exception alarm |
| Refueling method | Special oiler |
| Main oil pipe | Ø10 x 1.75 polyester pipe with pressure ≥20MPa |
| Distributor pipe | Ø4 x 0.75 Nylon pipe with pressure ≥9.3MPa |
| Maximum fuel supply distance | 15M |
| Maximum fuel supply distance | 4M |
